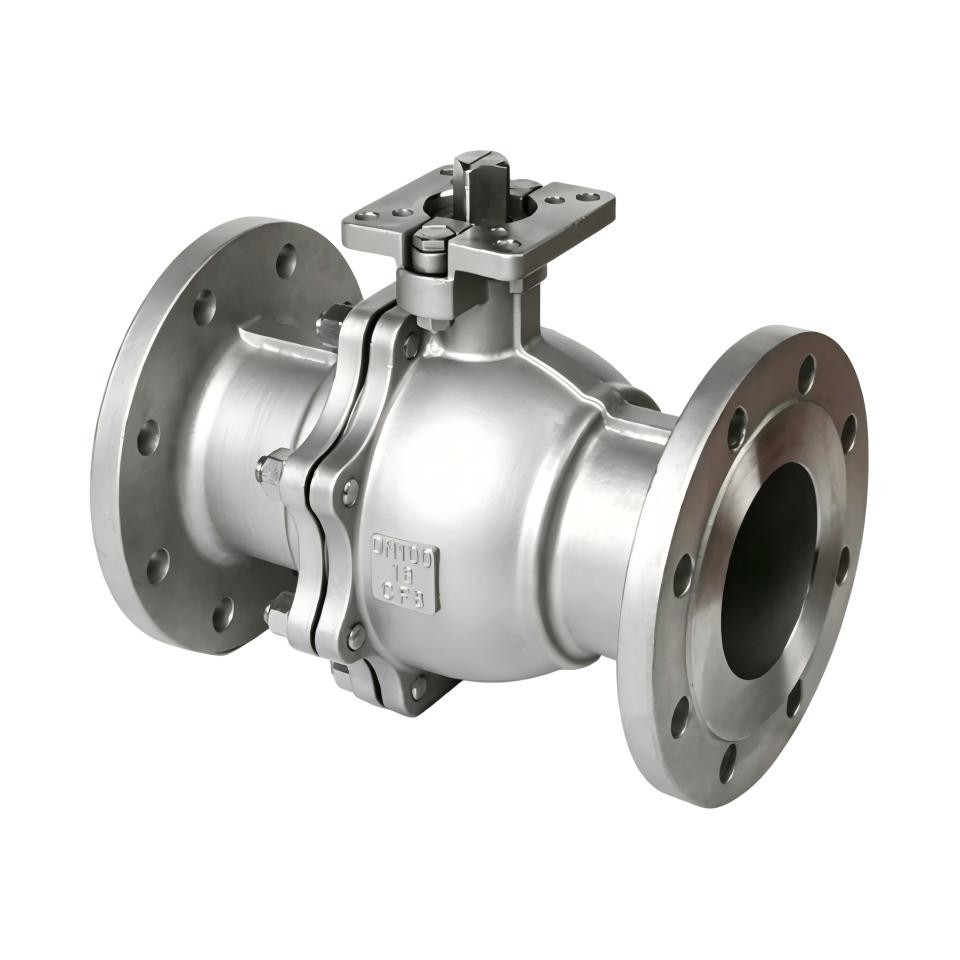

Product Name: Marine Valves – Bronze & Stainless Steel

Designed specifically for ocean-going vessels, our marine valves are manufactured from high-grade bronze and stainless steel (SS316 / SS304) to ensure reliable fluid control under harsh marine conditions. These valves are widely used in seawater cooling systems, bilge and ballast lines, fuel oil systems, and firefighting pipelines.

Material Advantages:

• Bronze Valves: Excellent resistance to seawater corrosion and dezincification; suitable for low-pressure systems such as sanitary, deck wash, and drainage.

• Stainless Steel Valves (SS316): Superior strength and pitting resistance; ideal for high-pressure, high-temperature, and aggressive fluid services including fuel oil, steam, and chemical lines.

Key Features:

• Compact and robust construction to withstand ship vibration and shock

• Corrosion-resistant internal and external surfaces for long service life at sea

• Tight shut-off with precision-machined sealing surfaces

• Flanged, threaded, or butt-weld ends available

• Nominal sizes: DN15 to DN600

• Pressure ratings: PN6 to PN40 (or Class 150 to Class 300)

• Operating temperature range: -20°C to +250°C depending on material and design

Valve Types Available (Both Bronze & Stainless Steel):

• Gate valves

• Globe valves

• Swing check valves

• Ball valves

• Butterfly valves

Standard Compliance:

• Manufactured according to ISO, BS, or JIS standards

• Approved by major classification societies: CCS, ABS, DNV, NK, LR, BV, RINA

Applications Onboard Ocean-Going Vessels:

• Seawater intake and cooling systems

• Ballast and bilge water management

• Fuel oil transfer and service systems

• Lubricating oil circuits

• Fire main and deck washing lines

• Sanitary and freshwater systems

Package Includes (Per Valve Unit):

• Valve body with handwheel / gear operator / actuator (optional)

• Flange gaskets and bolting (if specified)

• Test certificate and material traceability report

• Installation and maintenance instruction sheet

Choose our bronze and stainless steel marine valves for dependable, long-lasting performance in the demanding environment of ocean-going ships.
