Product Name: Marine Mooring Cleats & Fairleads – For Yachts

Engineered specifically for the luxury yacht and superyacht industry, our marine mooring cleats and fairleads provide superior strength, exceptional corrosion resistance, and refined aesthetics. Designed to withstand high line loads, continuous saltwater exposure, and heavy weather conditions, every component ensures safe, reliable docking and line management while complementing the yacht’s exterior styling.

Material Excellence:

• Primary material: Stainless Steel Grade 316L – marine-grade with high molybdenum content for maximum resistance to pitting and crevice corrosion

• Optional materials: Polished or brushed stainless steel, chrome-plated bronze, lightweight anodized aluminum, or duplex stainless steel for ultra-high strength applications

• Finishes: Mirror polish, satin (brushed), matte black PVD, or custom powder coating to match yacht hardware

• Surface treatment: Electropolishing or passivation for enhanced corrosion protection and easy cleaning

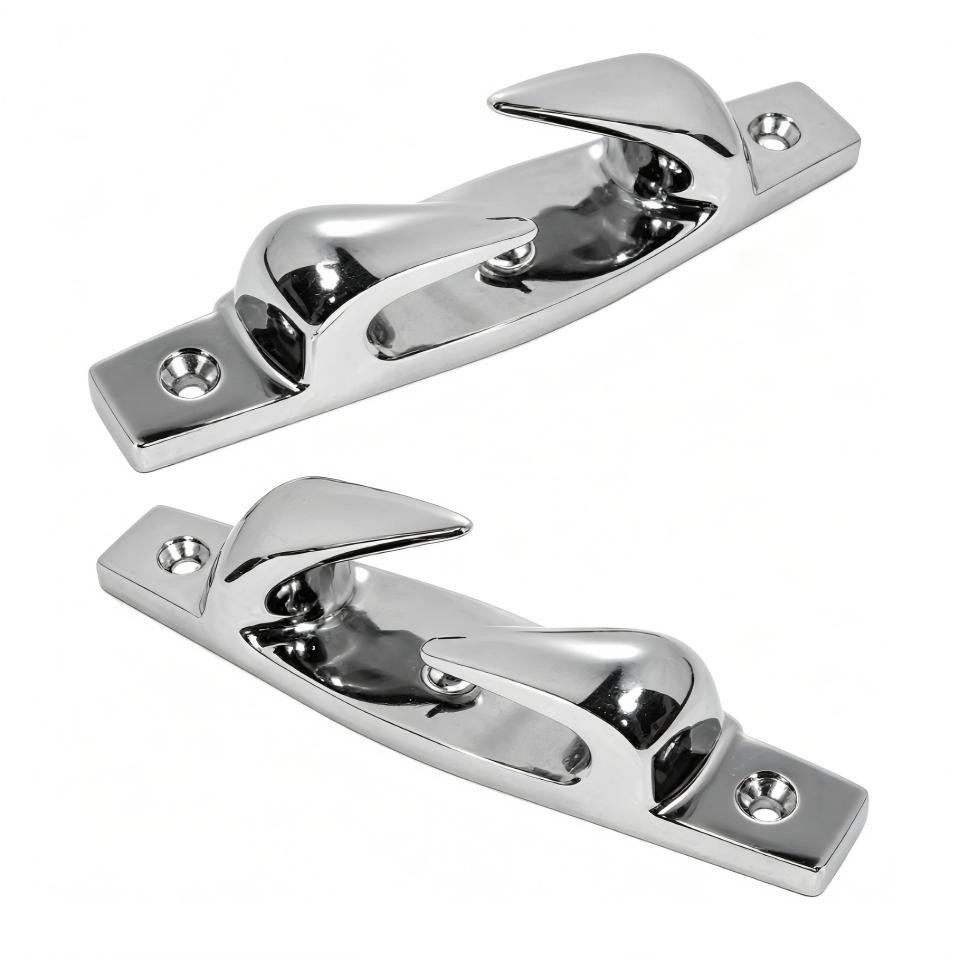

Mooring Cleats – Key Features:

• Designs: Single horn, double horn, T-top, pop-up, retractable, and flush mount

• Horn configurations: Open or closed base; flared or straight horn ends to prevent line slip

• Base styles: Flat base, raised base, or angled base to fit deck camber

• Sizes: From 6″ (150mm) for small tenders to 24″ (600mm) for superyachts

• Working load limits (WLL): 500 kg to 15,000+ kg depending on size and material

• Smooth, radiused horn surfaces to prevent chafing of mooring lines

• Through-bolt or weld-on mounting options for permanent installation

• Pop-up cleats: Spring-assisted or pneumatic, flush with deck when not in use – ideal for teak or fiberglass decks

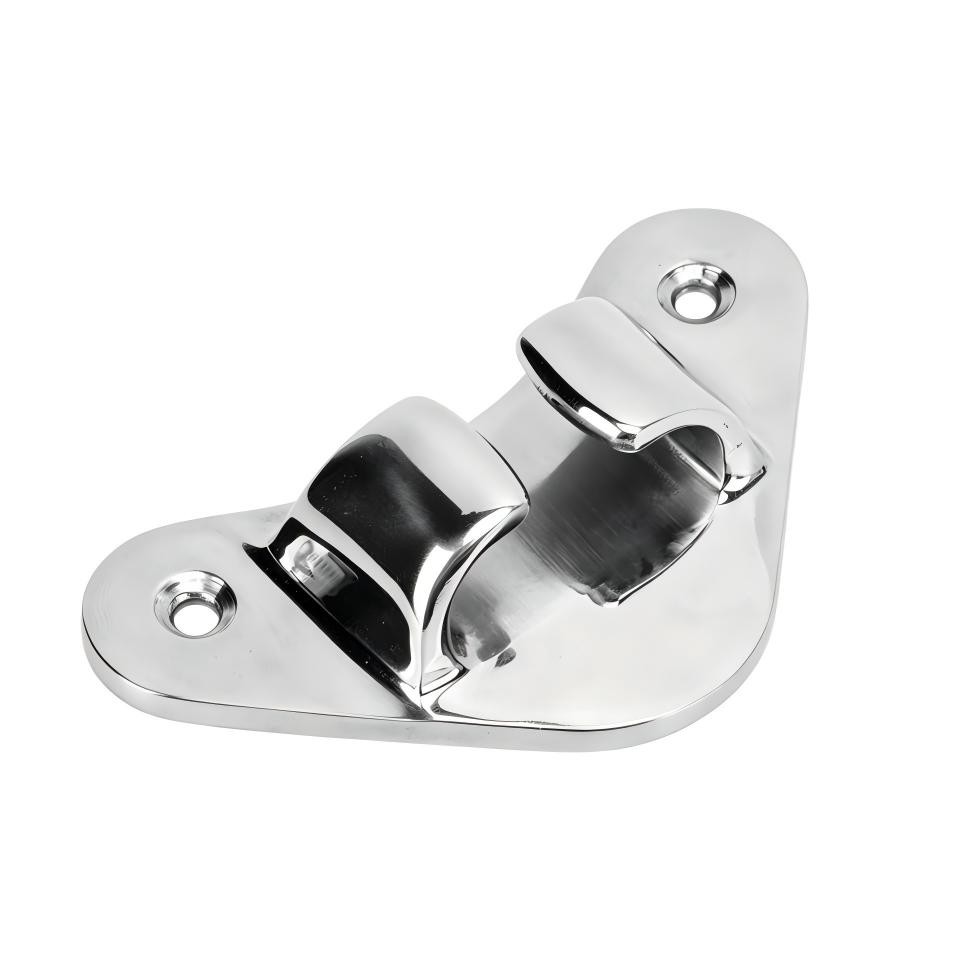

Fairleads – Key Features:

• Designs: Open chock, closed (closed chock), roller fairlead, universal fairlead, and recessed flush fairlead

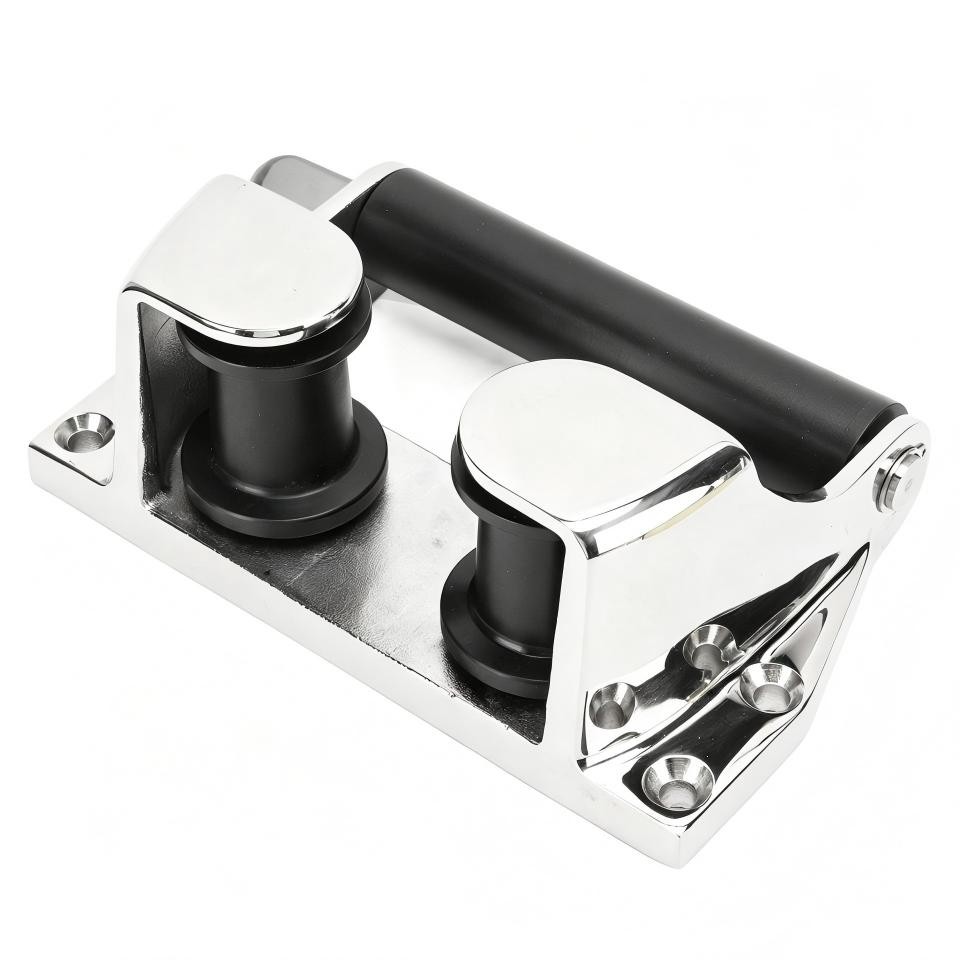

• Roller options: Single roller, double roller, or roller with vertical sheaves for multi-directional line lead

• Roller material: Stainless steel, nylon, or self-lubricating polymer for quiet, low-friction line travel

• Smooth, flared entry and exit lips to prevent line abrasion during angle pulls

• Integrated backing plates for high-load distribution

• Flush or low-profile designs to maintain clean deck aesthetics

• Chain stopper or line jammer integration available on request

Marine-Specific Engineering:

• ISO 9227 salt spray tested: 1,500+ hours without red rust

• Load rated for dynamic vessel motion and surge loads – minimum 4:1 safety factor

• All mounting holes countersunk or counterbored for flush fastener fit

• Fasteners: Grade 316 stainless steel bolts with nylon locking inserts and sealing washers

• Backing plates: Marine-grade aluminum or stainless steel, sized to spread load into deck structure

• No sharp edges – fully radiused and polished for safe line handling and crew protection

• Temperature rating: -30°C to +80°C (continuous marine duty)

Safety & Class Approvals:

• ABYC (American Boat & Yacht Council) standard H-40 for mooring fittings

• ISO 15084: Small craft – mooring, towing, and anchoring fittings

• Lloyd’s Register, DNV, ABS, or RINA type approval available upon request

• CE marked for recreational craft directive (RCD) compliance

Typical Yacht Applications:

• Bow mooring (primary cleats and fairleads for dock lines)

• Stern mooring (stern cleats and stern fairleads)

• Spring line cleats (midship, port, and starboard)

• Towing cleats for emergency or tender towing

• Passerelle (gangway) line management

• Fuel dock and marina berthing stations

• Secondary cleats for fender lines or safety tethers

Package Includes (Per Unit):

• Mooring cleat or fairlead individually packed

• Full set of Grade 316 mounting bolts, washers, and locking nuts

• Backing plate (if specified)

• Installation template and drilling guide

• Care and maintenance guide for marine hardware

Optional Upgrades:

• Laser-engraved yacht name or logo on cleat base

• Custom castings for non-standard shapes or sizes

• Rubber or nylon chafe guards for fairlead lips

• LED illumination integrated into flush cleats or fairleads

• Retractable cleats with remote or manual pop-up mechanism

• Color-matched powder coating to deck or hardware finish

Choose our marine mooring cleats and fairleads for your yacht to achieve the perfect balance of brute strength and refined elegance. From the confident snub of a bow line against a storm surge to the clean, flush look of a teak deck free of protruding hardware – every fitting is designed to perform flawlessly and look beautiful through years of global cruising.
