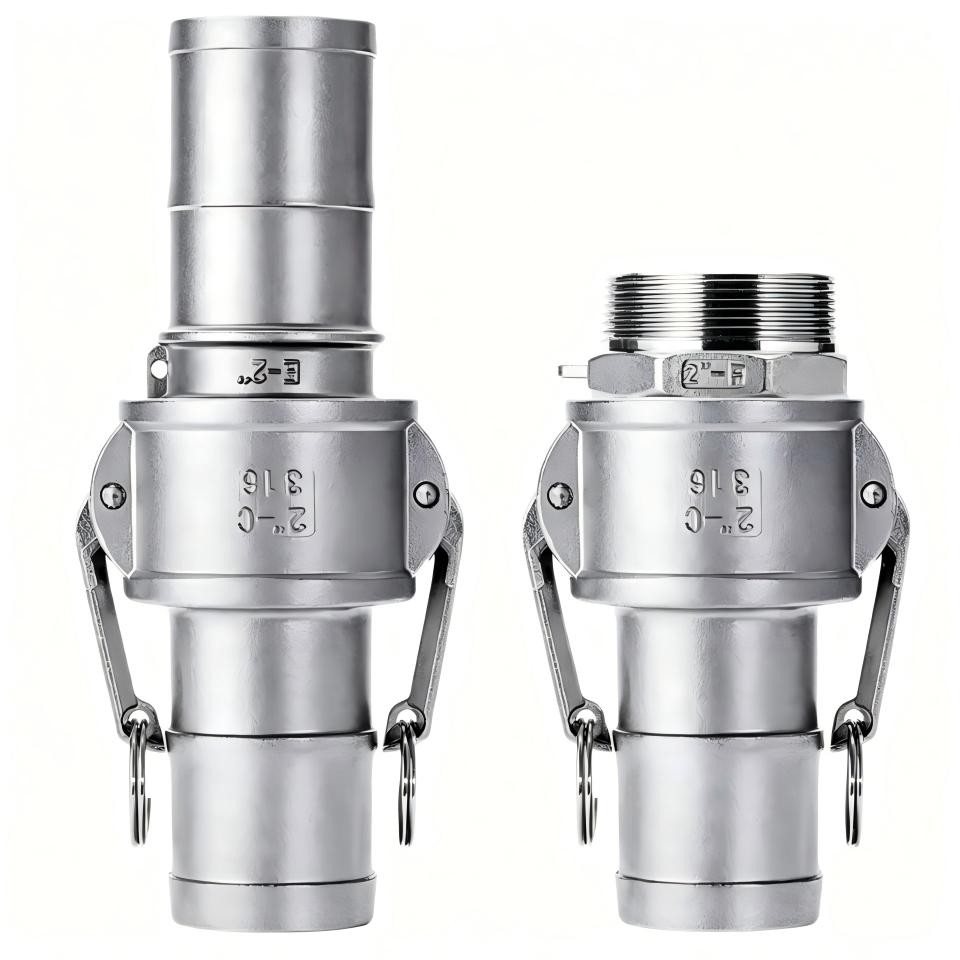

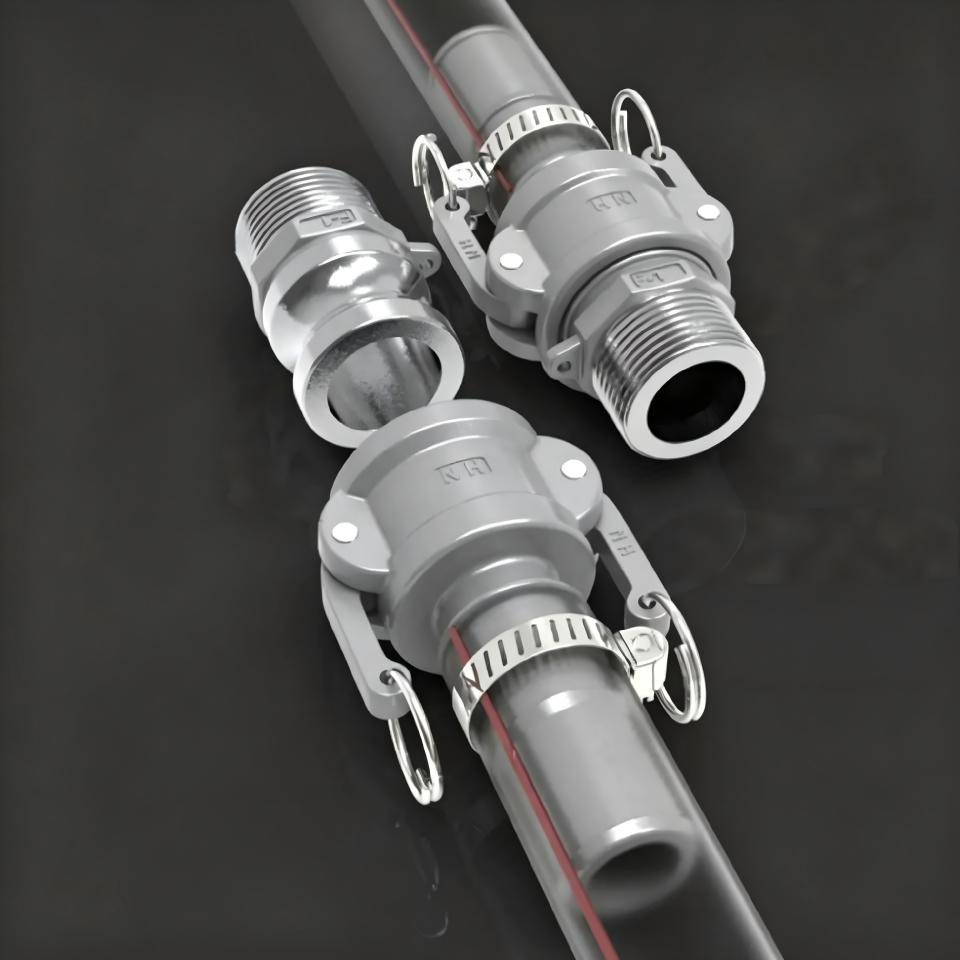

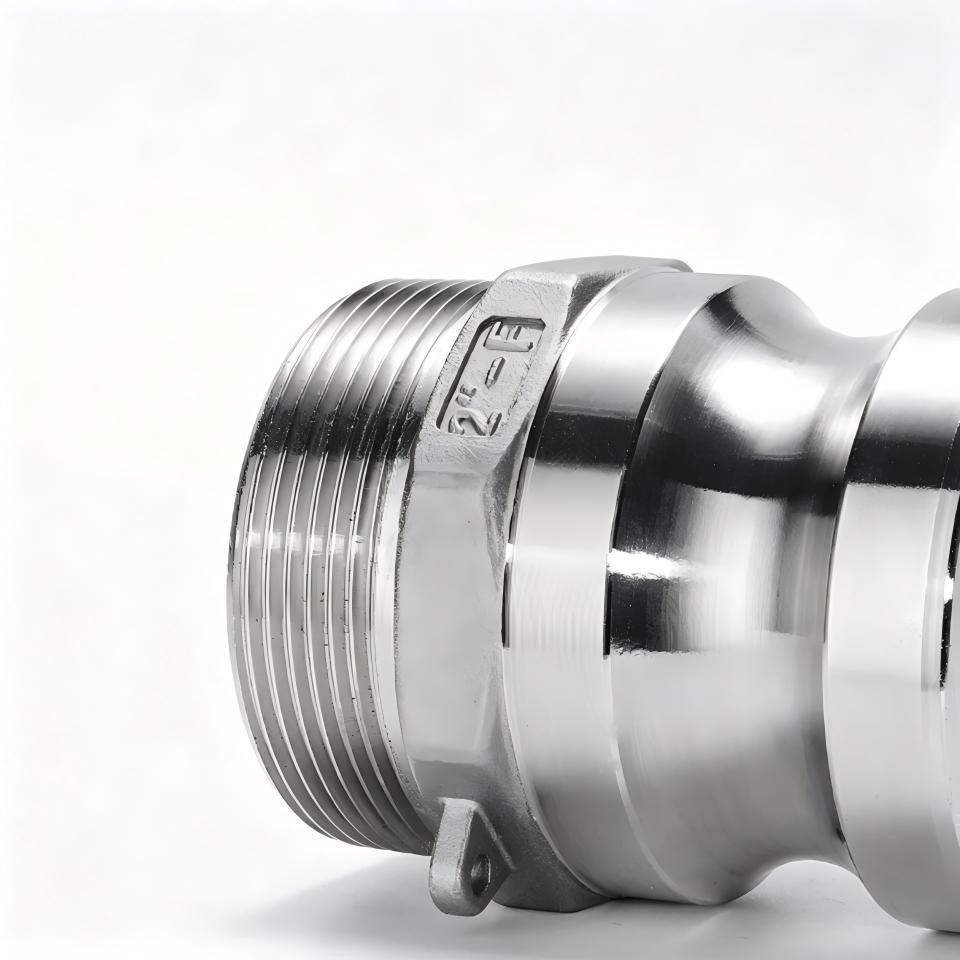

Product Name: Quick Couplings – Pipe Fittings for Rapid Connection

Our quick couplings are precision-engineered pipe fittings designed for fast, tool-free connection and disconnection of hoses and pipes. Ideal for industrial, marine, and mobile equipment applications, these couplings ensure leak-free performance and reduce system downtime significantly.

Key Features:

• One-handed operation for instant connect and disconnect

• Automatic shut-off valves on both ends to prevent fluid spillage

• Available in various materials including brass, stainless steel (SS304 / SS316), and aluminum

• Smooth internal bore for minimal pressure drop and turbulence

• Secure locking mechanism to prevent accidental uncoupling

• Interchangeable with major global standards (e.g., ISO 7241-1, A-A-59439, Parker, Hansen)

Material Options & Applications:

• Brass: General-purpose; air, water, low-pressure hydraulic fluids

• Stainless Steel (SS316): Corrosive environments; seawater, chemicals, food-grade liquids, marine systems

• Aluminum: Lightweight; pneumatic tools and mobile hydraulic systems

Technical Specifications:

• Connection sizes: 1/4" to 2" (DN6 to DN50)

• Thread types: NPT, BSP, BSPP, or metric

• Pressure range: up to 5,000 psi (depending on material and size)

• Temperature range: -20°C to +200°C (based on seal material)

• Seal options: NBR, FKM (Viton), EPDM, PTFE

Applications:

• Marine deck hydraulics and cooling lines

• Industrial water and air distribution

• Chemical transfer systems

• Agriculture and irrigation equipment

• Construction and mining machinery

• Firefighting hose connections

• Test rigs and maintenance panels

Benefits:

• No tools required for connection – saves time during installation or replacement

• Reduces fluid loss and improves workplace safety

• Compact design fits tight spaces

• Easy to clean and maintain

Package Includes (Per Coupling Set):

• One male plug and one female coupler

• Dust cap (optional)

• Sealing ring(s)

• Technical datasheet

Choose our quick couplings for efficient, reliable, and spill-free pipe connections in any demanding environment.
